Toyota Quantum Common Problems in Johannesburg: Turbo, DPF & Buying-Used Guide

The Toyota Quantum is the workhorse of Johannesburg's roads: a taxi, shuttle or panel van doing shifts most cars never see, running a diesel 2KD-FTV engine that can genuinely reach 400,000 to 600,000 km with consistent servicing. But that duty cycle takes its toll in specific, predictable places. Beyond the injector and clutch wear already well known (see our Toyota Quantum parts page for full pricing on those two), the faults that actually catch Quantum owners out are turbo wastegate wear (R9,000 to R22,000), DPF/EGR clogging from stop-start taxi-rank driving (R3,500 to R12,000), rear leaf spring sag from overload duty (R2,280 to R7,500), and a sliding door mechanism that takes hundreds of open-close cycles a day (R900 to R4,500). Here's what to know before something fails, or before you buy one.

Turbocharger wear: underboost and limp mode above 250,000 km

The 2KD-FTV's variable-geometry turbo (VGT) is a known long-term wear point once a Quantum passes roughly 250,000 km. The wastegate actuator diaphragm tears or its rod corrodes, oil sludge from delayed services starves the turbo bearing feed, and carbon buildup can seize the wastegate arm entirely ¹². The result is intermittent power loss, a rattle or whistle from the turbo area under boost, grey or white smoke on a cold start, and eventually a dashboard underboost or reduced-power warning ³.

A diesel specialist will pressure-test the actuator and check wastegate arm movement before deciding whether the unit needs reconditioning or full replacement. No public South African retail price for a Quantum turbo was locatable during our research, so treat R9,000–R22,000 fitted as an indicative range, and always confirm with a specialist quote before committing ¹.

DPF and EGR clogging: the taxi-rank driving pattern

Short stop-start urban trips, exactly the driving pattern of a Johannesburg taxi doing rank-to-rank runs, never let the diesel particulate filter reach the sustained highway temperature it needs for passive regeneration. Soot builds up, the EGR pintle and passages clog with carbon deposits, and local diesel quality doesn't help ⁴⁵. Owners report the DPF warning lamp coming on, sudden power loss or limp mode, frequent forced-regeneration cycles, and an unstable idle with hesitation on acceleration ⁶.

A diesel specialist starts by pulling the DPF soot-load percentage and exhaust temperature sensor data ⁴. A moderate case clears with a forced dealer-tool regeneration, while a heavily clogged filter or a failed sensor needs cleaning or replacement. Expect R3,500–R12,000 depending on severity.

Sliding door roller, track and latch wear

A Quantum in taxi service cycles its sliding door hundreds of times a day, and the mechanism simply isn't built for that kind of abuse indefinitely. Nylon and rubber rollers wear flat, tracks bend or rust under constant high-frequency use, grit and mud pack into the channel, and repeated slamming knocks the latch or striker out of alignment ⁷⁸. The telltale signs are a door that sticks or is hard to slide, squeaking or grinding from the track, a door that droops out of alignment at the rear, or one that fails to latch fully and pops back open.

A technician's first move is to clean and re-grease the track. If the rollers show flat spots or the track itself is bent or rusted, the roller assembly or track section gets replaced rather than repaired. On a taxi doing constant door cycles this is a recurring wear item rather than a one-off fault, worth checking at every major service. Budget R900–R4,500 for roller, track or latch component work plus fitting.

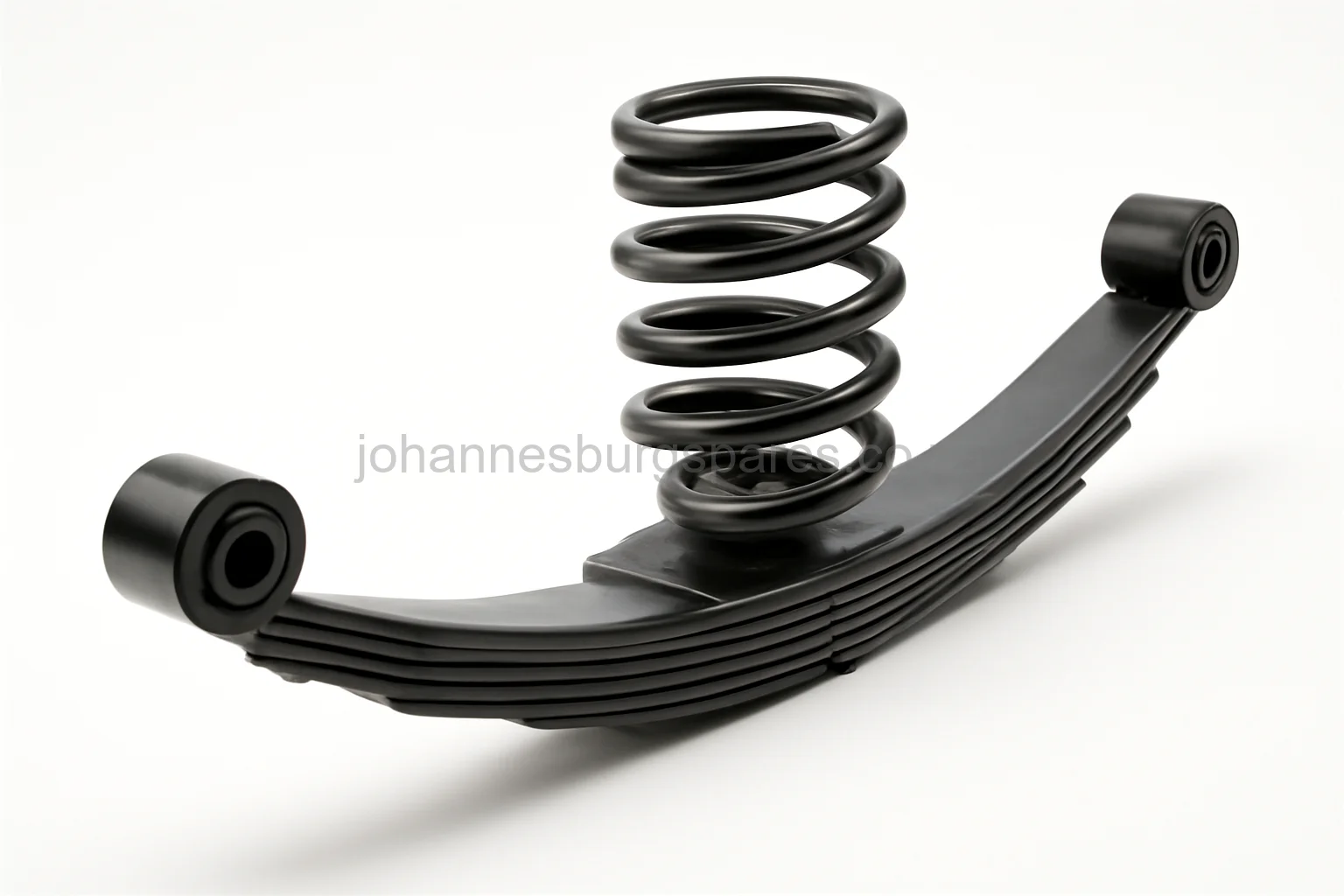

Rear leaf spring sag: an overload problem, not a manufacturing fault

The single most duty-cycle-driven fault on a Quantum used as intended is rear leaf spring fatigue from chronic overloading: packing a taxi or panel van beyond its rated payload, trip after trip, fatigues the spring metal over time ⁹¹⁰. Watch for the vehicle sitting noticeably lower at the rear when loaded, a harsh bouncy ride over bumps, axle tramp under load or braking, and uneven rear tyre wear.

A workshop measures ride height and inspects the leaf eyes and rubber bushes for cracking. Sagged springs that aren't cracked can often be re-arched or retensioned with new bushes and U-bolts, which is cheaper and common practice for a quick taxi turnaround. Cracked leaves need a full pair replaced. Budget R2,280–R7,500 depending on which repair route is needed. Browse our suspension parts if you need leaf springs, bushes or U-bolts for your Quantum.

Cooling system: radiator fan motor and water pump wear

Cooling faults show up as the temperature gauge climbing in traffic or at idle, a radiator or AC cooling fan that isn't spinning (or only runs at one speed), a whining or grinding noise from the front of the engine, or coolant weeping from the water pump's weep hole ¹¹¹². Owner reports include a 2021-model Quantum with a faulty radiator fan and a 250,000 km unit with the AC-side fan not running at all ¹¹.

Diagnosis starts with a visual check for weep-hole leakage at the water pump alongside a bench or multimeter test on the fan motor and its relay. Both are sealed units, so whichever tests faulty gets replaced rather than repaired. Budget R1,800–R6,500 for a radiator fan motor or water pump job, fitted.

Electrical faults: wiring, fuses and instrument cluster dropouts

Electrical gremlins are the most-reported fault category in our research: a speedometer, fuel gauge or turn signals that stop working, a no-start with no ignition power reaching the alternator, a fuel pump that won't prime because of a relay circuit fault, or reverse and number-plate lights that don't come on ¹³¹⁴. The usual culprits are a failed fuse or relay in the engine-bay fuse box, a wiring harness chafing or burning near the steering box, contaminated or damaged ABS wheel-speed sensor wiring, or a failed HVAC blower resistor pack ¹⁵.

Diagnosis starts at the fuse and relay box with a continuity check before moving to a harness inspection. A chafed or burned section near the steering box is a recurring cause of speedometer and turn-signal dropout. Costs vary widely with the fault, from R450 for a blown fuse at the low end to R6,500 for a wiring harness repair or instrument cluster replacement at the top. Our electrical parts range covers fuses, relays and sensors if you're chasing one of these down.

Buying a used Quantum: what to check before you hand over money

A used Quantum's biggest risk isn't the odometer reading, it's what's been deferred. Well-maintained 2KD-FTV diesel units commonly reach 400,000 to 600,000 km, with some operators reporting 700,000 km-plus, so a high number on its own isn't a red flag if the service history backs it up ¹⁶. What should worry you is the opposite: no documented service history despite a high reading, a recent engine or turbo "swap" with no paperwork to explain it, a sagging rear stance suggesting chronic overload, or a sliding door that drags or won't latch cleanly on a test drive.

Ask the seller for evidence of timing belt, injector and water pump work, and get a compression or leak-down test done before you hand over money. An independent pre-purchase inspection runs R800–R2,500 and is cheap insurance against a R20,000-plus turbo or injector bill six months in. It's also worth checking trim level on the test drive: AutoTrader SA notes that base-spec Quantums carry only two airbags (VX trims get seven) and have long rear overhangs with limited rear visibility, both worth confirming for yourself rather than taking on faith ¹⁷.

What it costs in South Africa: the Quantum fault price table

Here's the quick-reference cost guide for the faults covered above, using typical Johannesburg parts-and-labour ranges. For injector and clutch pricing, see our Toyota Quantum parts page.

Fault	What's involved	Typical SA price
Turbo wastegate/actuator wear	Reconditioned VGT turbo unit, fitted	R9,000 – R22,000
DPF/EGR clogging	Forced regeneration through to full clean	R3,500 – R12,000
Sliding door roller/track/latch	Component replacement, fitted	R900 – R4,500
Rear leaf spring sag	Retensioning or full pair replacement	R2,280 – R7,500
Radiator fan motor / water pump	Component replacement, fitted	R1,800 – R6,500
Electrical (fuse to harness/cluster)	Diagnosis plus fault-dependent repair	R450 – R6,500
Pre-purchase inspection	Compression/leak-down test	R800 – R2,500

So what should you budget for?

None of the sources checked in our research turned up a formal South African or UK safety recall for the Quantum's turbo, DPF, suspension, door or electrical systems. These are duty-cycle wear items, not manufacturing defects. On a Quantum doing 300,000 km-plus on taxi or panel-van duty, a reasonable reliability reserve sits around R25,000–R45,000 (roughly R2,000 to R3,500 a month set aside) to cover turbo, DPF service, leaf springs, door mechanism and electrical work across a typical ownership window, on top of the injector and clutch costs already covered on our Quantum parts page.

When something on your Quantum does need replacing, you don't have to pay main-dealer prices. We carry new and quality aftermarket Quantum spares with delivery across Johannesburg. Send us your symptoms, engine code and mileage and we'll come back with a price, usually the same day.

Frequently Asked Questions

Why does my Toyota Quantum lose power or go into limp mode? The two most common causes are 2KD-FTV turbo underboost, from a worn wastegate actuator or carbon-seized wastegate arm, usually above 250,000 km, and DPF/EGR clogging from short stop-start driving that never lets the filter regenerate properly. Both trigger a loss-of-power or limp-mode response. A diesel specialist can distinguish between them with a boost pressure test and a DPF soot-load reading.

How much does it cost to fix a Toyota Quantum turbo? No public South African retail price was found for a Quantum-specific turbo during our research, so treat R9,000 to R22,000 fitted as an indicative range for a reconditioned VGT unit, and confirm with a diesel specialist quote before committing. Reconditioning is usually cheaper than a new replacement and is common practice at SA diesel specialists.

Why does the sliding door on my Quantum stick or squeak? Taxi and shuttle Quantums cycle their sliding door hundreds of times a day, which wears the nylon rollers flat, bends or rusts the track, and packs grit into the channel. A technician will clean and re-grease the track first; if the rollers or track itself are damaged, the roller assembly or track section is replaced. Budget R900 to R4,500 for the fix.

Why does my Quantum sit low at the back or bounce over bumps? This is almost always rear leaf spring fatigue from overloading beyond the rated payload, common on taxi and panel-van duty. A workshop can re-arch or retension the springs with new bushes and U-bolts (cheaper) or replace a cracked pair outright. Budget R2,280 to R7,500 depending on the extent of the damage.

How many kilometres can a Toyota Quantum diesel do? Well-maintained 2KD-FTV diesel Quantums commonly reach 400,000 to 600,000 km, with some operators reporting 700,000 km-plus on consistent servicing. Full service history, including timing belt, injector and water pump work, matters far more than the raw odometer reading when buying used. A compression or leak-down test before purchase is the best way to confirm engine condition.

Where can I buy Toyota Quantum parts in Johannesburg? Johannesburg Spares supplies new and quality aftermarket Quantum parts, including turbo components, DPF and fuel-system parts, suspension, door mechanisms, cooling and electrical parts, with delivery across Gauteng. Send us your Quantum's engine code, mileage and the part or symptom you're dealing with, and we'll quote you, usually the same day.

Sources

1. Technical Parameters — Toyota HiAce Faults
2. Engine Explained — Toyota 2KD-FTV 2.5L Reliability and Common Problems
3. Carista — P0299 Code Causes and Fixes
4. The DPF Team — 2007-2010 Toyota Hiace DPF Issues
5. P&G Motors — Toyota Hiace KDH201 2KD Diesel DPF Soot Accumulation
6. JustAnswer — 2016 Hiace P2463 DPF Problem
7. CarUsed.jp — How to Fix the Sliding Door of Your Hiace Van
8. HiAce Super Custom Forum — Sliding Door Roller
9. RepairPal — Leaf Spring Replacement Cost Estimate
10. 4x4community.co.za — Leaf Springs: Reconditioned or New
11. StartMyCar — Toyota Hiace Problems and Issues
12. Toy Car Care — Why Your Toyota's Cooling System Is Overheating
13. Technical Parameters — Toyota HiAce Faults (electrical section)
14. JustAnswer — Toyota Quantum Fuel Pump Relay Location and Testing Guide
15. StartMyCar — Toyota Hiace P1272 Fuel Pressure Regulator Circuit Report
16. Diversity Engines — Toyota Quantum Engine Lifespan
17. AutoTrader SA — Everything You Need to Know About the Toyota Quantum
